PVC 45 Degree Elbow
2-PVC ELBOWS

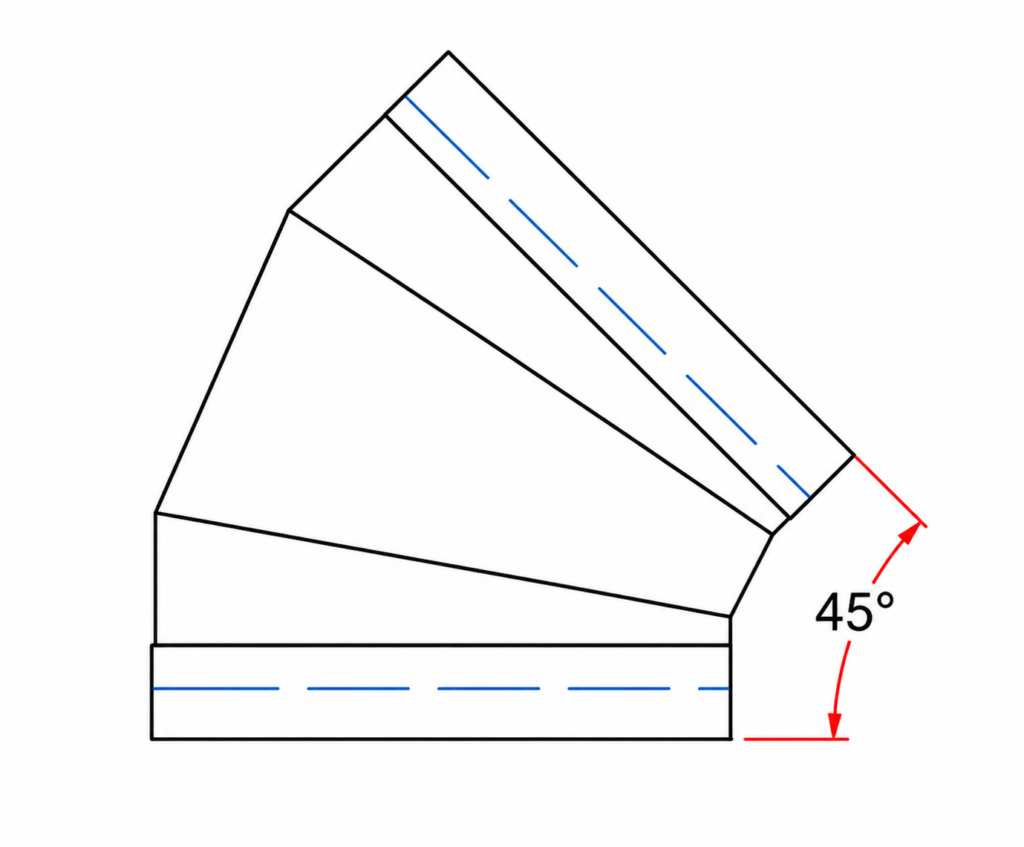

• Standard Size Elbows Fabricated From Seamless Extruded PVC Duct
• All Fitting Dimensions Based on 1:1 Fitting Ratio
• Fitting Pieces Triple-Pass Welded Using 5/32” PVC Welding Rod
• All Dimensions in Inches
• All Dimensions are to CSSI standards and are Subject to Change
2-PVC ELBOWS DIMENSIONS & PRICING
| Model Number | Nominal Duct Size | Average Duct O.D | Average Wall Thickness | End Type |
|---|---|---|---|---|
| 45-PVC-6-1 | 6 | 6.625 | 0.187 | Socket |
| 45-PVC-7-1 | 7 | 7.375 | 0.187 | Socket |
| 45-PVC-8-1 | 8 | 8.625 | 0.187 | Socket |
| 45-PVC-9-1 | 9 | 9.75 | 0.187 | Socket |
| 45-PVC-10-1 | 10 | 10.75 | 0.187 | Socket |
| 45-PVC-12-1 | 12 | 12.75 | 0.187 | Socket |
| 45-PVC-14-1 | 14 | 14 | 0.187 | Socket |
| 45-PVC-16-1 | 16 | 16 | 0.187 | Socket |
| 45-PVC-18-1 | 18 | 18 | 0.187 | Socket |
| 45-PVC-20-1 | 20 | 20 | 0.219 | Socket |
| 45-PVC-24-1 | 24 | 24 | 0.25 | Socket |
All dimensions in inches. Prices subject to change.
