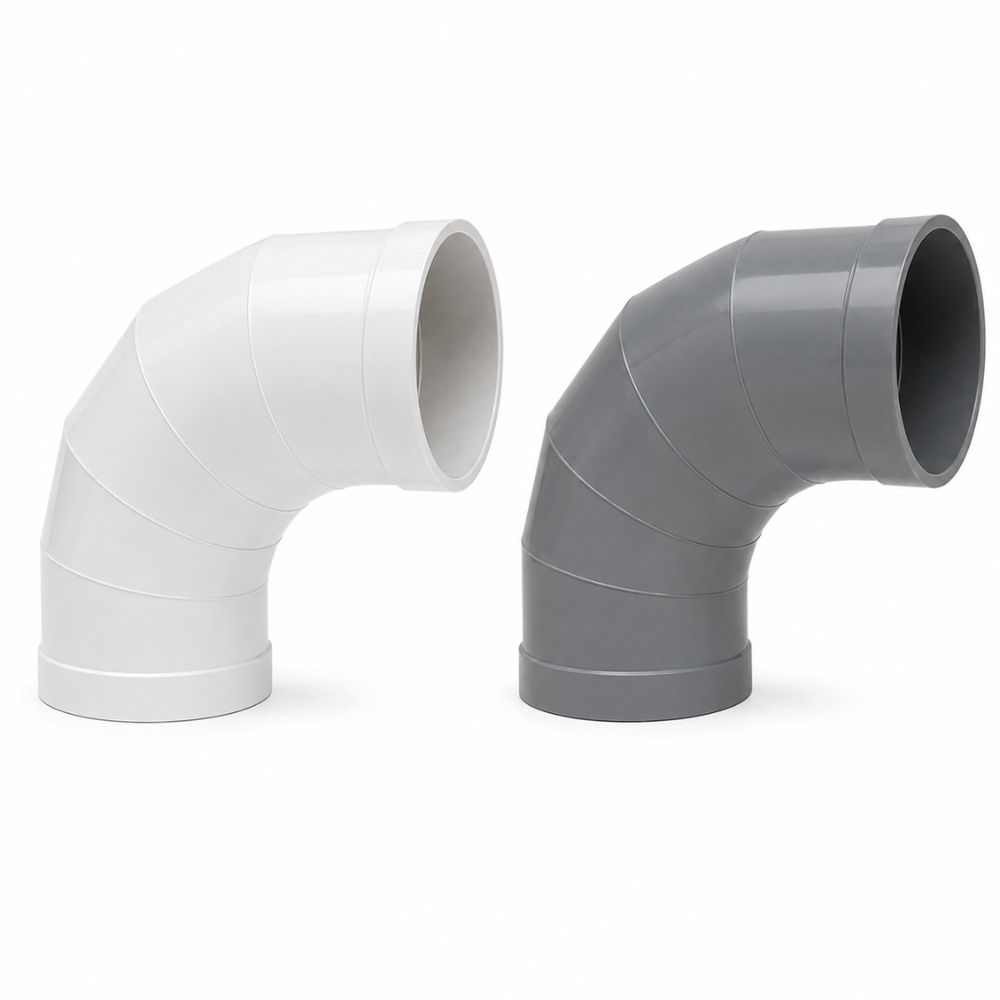

90 degree tee bench

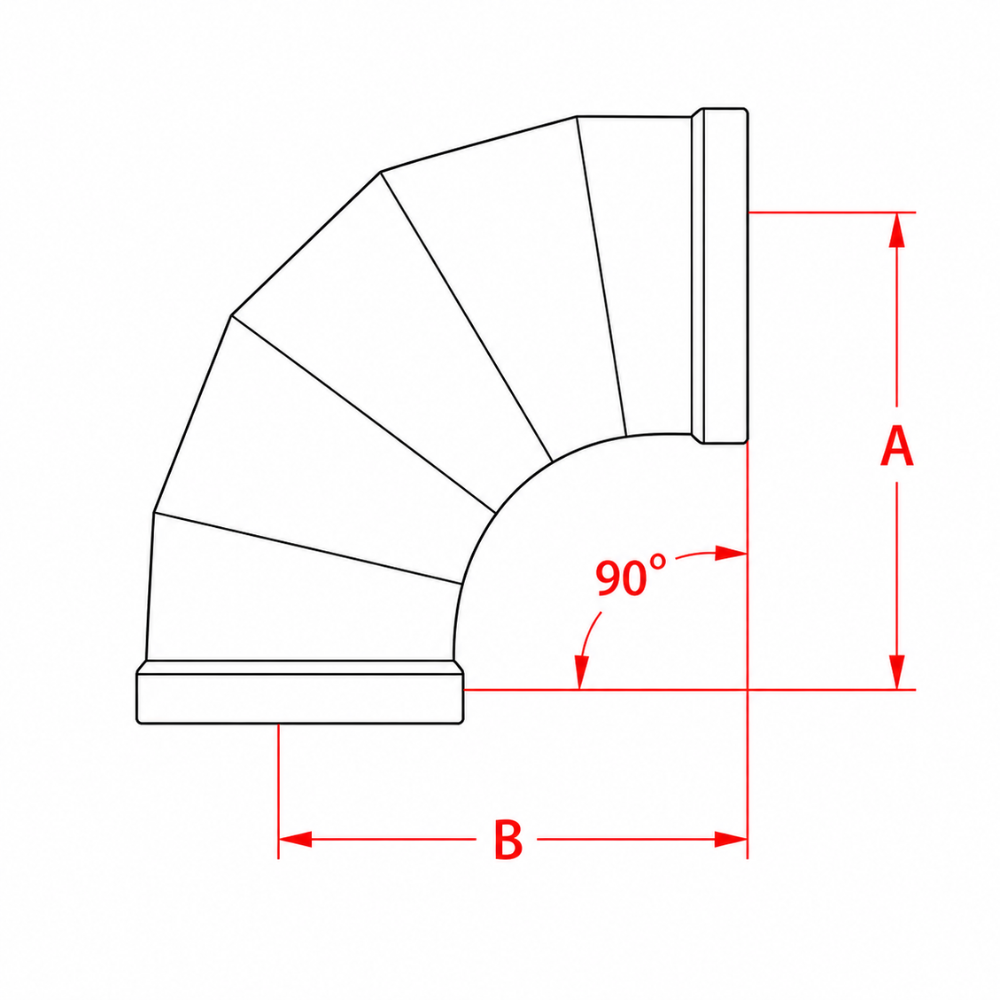

90 degree tee bench 1

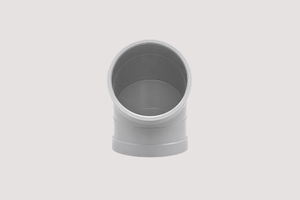

1
2

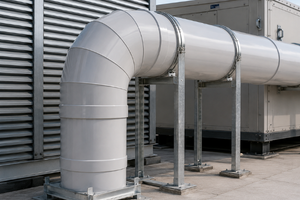

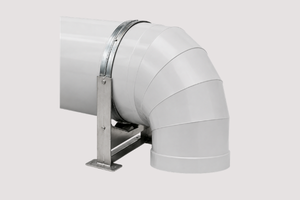

3
ELBOWS
90° Elbows
Fabricated 90° elbow fittings for changing the
direction of airflow in industrial duct systems.
Available in PVC and CPVC for superior corrosion
resistance and long-term performance.

Fabricated 90° elbow fittings for changing the direction of airflow in industrial duct systems. Available in PVC and CPVC for superior corrosion resistance and long-term performance.

Corrosion
Resistant

Chemical
Resistant

Lightweight &
Strong

Low
Maintenance

Specifications
Select Material & Size

Choose your material to view available models, dimensions, and end configurations.

PVC & CPVC Tabs

PVC

Polyvinyl Chloride

CPVC

Chlorinated Polyvinyl Chloride

  • PVC supports corrosion-resistant industrial ventilation applications with strong chemical durability and low maintenance.

PVC 90° ELBOWS

Model NumberNominal Duct SizeAverage Duct O.DABAverage Wall ThicknessEnd Type
90-PVC-6-166.6256.625A+2"0.187Socket
90-PVC-7-177.3757.375A+2"0.187Socket
90-PVC-8-188.6258.625A+2"0.187Socket
90-PVC-9-199.3759.375A+2"0.187Socket
90-PVC-10-11010.7510.75A+2"0.187Socket
90-PVC-12-11212.7512.75A+2"0.187Socket
90-PVC-14-1141414A+2"0.187Socket
90-PVC-16-1161616A+2"0.187Socket
90-PVC-18-1181818A+2"0.187Socket
90-PVC-20-1202020A+3"0.219Socket
90-PVC-24-1242424A+3"0.25Socket
  • CPVC supports industrial ventilation applications requiring greater temperature resistance and chemical durability.

CPVC 90° ELBOWS

Model NumberNominal Duct SizeAverage Duct O.D.ABAverage Wall ThicknessEnd Type
90-CPVC-6-166.6256.625A+2"0.187Socket
90-CPVC-7-177.3757.375A+2"0.187Socket
90-CPVC-8-188.6258.625A+2"0.187Socket
90-CPVC-9-199.3759.375A+2"0.187Socket
90-CPVC-10-11010.7510.75A+2"0.187Socket
90-CPVC-12-11212.7512.75A+2"0.187Socket
90-CPVC-14-1141414A+2"0.187Socket
90-CPVC-16-1161616A+2"0.187Socket
90-CPVC-18-1181818A+2"0.187Socket
90-CPVC-20-1202020A+3"0.219Socket
90-CPVC-24-1242424A+3"0.25Socket

Need a size or configuration not listed?

Request Custom Size Or Configuration
